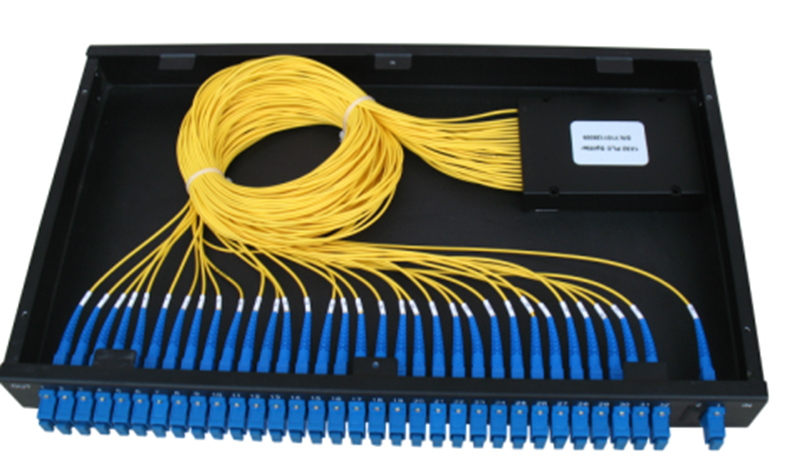

19inch Rack Splitter

PLC splitters are used to distribute or combine optical signals, widely used in GPON Network.SisoTT PLC splitters offer superior optical performance, high stability and high reliability to meet various application requirements.

  • Catalog
  • Warranty
  • Contact us

Features:

  • Compact design
  • Low insertion loss and low PDL
  • High reliability
  • High channel counts
  • Wide wavelength range
  • Large operating temperature range
  • Customized packaging and configuration

Applications:

  • FTTx systems
  • LAN,WAN and Metro Networks
  • Analog/Digital Passive Optical Networks
  • CATV Networks
  • Other applications in fiber optical systems

Compliance:

  • Telcordia GR-1209-CORE
  • Telcordia GR-1221-CORE

1XN PLC Specifications

Port Configuration 1X2 1X4 1X8 1X16 1X32 1X64
Fiber Type SMF-28e or Customer specified
Operating Wavelength(nm) 1260~1650
Insertion Loss(dB) Typical 3.7 6.8 10.0 13.0 16.0 19.5
Max 4.0 7.2 10.5 13.5 16.9 21.0
Loss Uniformity(dB) Max 0.4 0.6 0.8 1.2 1.5 2.5
Return Loss(dB) Min 50 50 50 50 50 50
Polarization Dependent Loss(dB)Max Max 0.2 0.2 0.3 0.3 0.3 0.4
Directivity(dB) Min 55 55 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.3 0.3 0.3 0.5 0.5 0.8
Temperature Dependent Loss(-40~85C)(dB) Max 0.5 0.5 0.5 0.8 0.8 1.0
Operating  Temperature(C) -40~85
Storage Temperature(C) -40~85

Notes: 1. Specifications without fiber connectors.
               2. Room temperature test.

2XN PLC Specifications

Port Configuration 2X2 2X4 2X8 2X16 2X32 2X64
Fiber Type SMF-28e or Customer specified
Operating Wavelength(nm) 1260~1650
Insertion Loss(dB) Typical 3.7 6.8 10.0 13.0 16.0 19.5
Max 4.0 7.2 10.5 13.5 16.9 21.0
Loss Uniformity(dB) Max 0.4 0.6 0.8 1.2 1.5 2.5
Return Loss(dB) Min 50 50 50 50 50 50
Polarization Dependent Loss(dB)Max Max 0.2 0.2 0.3 0.3 0.3 0.4
Directivity(dB) Min 55 55 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.3 0.3 0.3 0.5 0.5 0.8
Temperature Dependent Loss(-40~85C)(dB) Max 0.5 0.5 0.5 0.8 0.8 1.0
Operating  Temperature(C) -40~85
Storage Temperature(C) -40~85


Notes: 1. Specifications without fiber connectors.
               2. Room temperature test.
